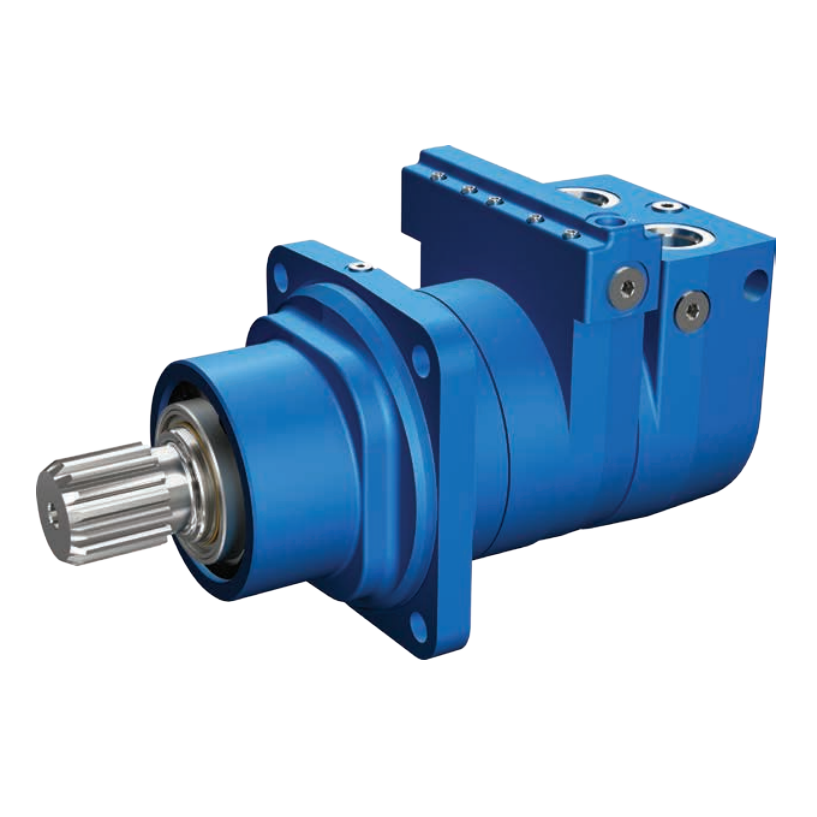

Char-Lynn HP30 Series Hydraulic Motor

Featuring exceptional starting torque efficiency and two-speed capability, the HP30 offers significant advantages over competitive radial piston and designs. Also, by minimizing no load pressure drop to less than 20 bar [290 psi] at 133 lpm [35 gpm] in high speed mode – the best in the industry – the HP30 motor reduces parasitic heat build-up, thereby improving vehicle operating efficiency and reducing emissions

Features

  • High starting torque efficiency
    • The HP30 has an optimized eccentricity to improve starting torque efficiency without sacrificing overall torque capacity or endurance
    • The HP30 was designed using Eaton's proprietary geroler profiles which limits the amount of torque ripple leading to more starting torque efficiencies
  • Low No-Load Pressure Drop (NLPD)
    • The HP30 uses a disc valve to minimize fluid losses in the motor
    • Lower heat generation means smaller coolers and radiators, which allows more engine space for tier 4 and tier 5 requirements
    • Less wasted energy means lower system operating temperatures
  • Series circuit capability
    • Reduces system costs when compared to parallel circuit designs

Contact us for more information about

Brand

Eaton

CC Min Displacement

344.00

CC Max Displacement

677.00

CID Min Displacement

21.00

CID Max Displacement

41.30

Min Cont PSI

3500

Max Peak PSI

5500

Min Cont BAR

241

Max Peak BAR

379

Min RPM

252

Max RPM

770

Min Cont Torque in LBS

21852

Intermittent Max Torque in LBS

25605

Min Cont Torque Nm

2469

Intermittent Max Torque Nm

2893

Specs Data
