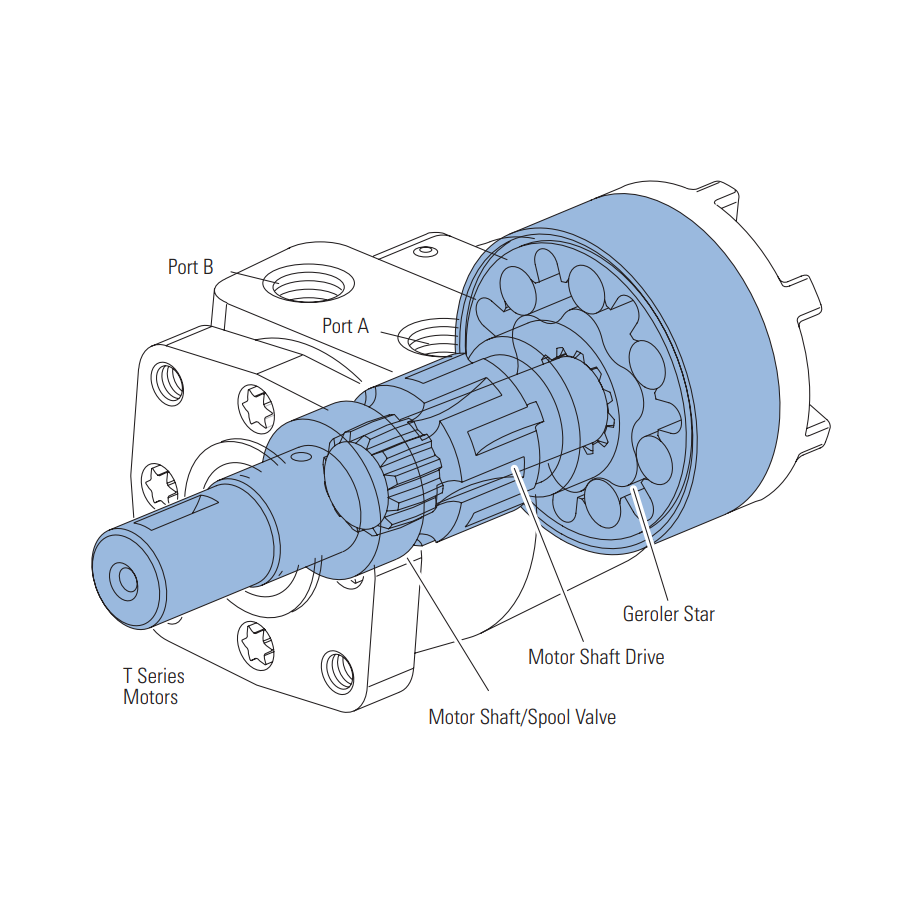

Char-Lynn T Series Low Speed, High Torque Motor

The newest Geroler motor, the “T Series, features the latest innovations in Geroler technology. These innovations include optimized Geroler geometry with lower drive running angle for improved life and improved low speed performance. In addition, the improved housing and smaller diameter end cap results in increased envelope rigidity which improves efficiency under high pressure loads. All of these innovations come together to make the T Series motor the highest performing motor in its class.

Features

  • Constant clearance Geroler‚ geometry
  • Optimized drive system with reduced running angle
  • Three-pressure zone design (ability to reduce case pressure)
  • Variety of displacements, shafts and mounts
  • Special options to meet customer needs

Contact us for more information about

Brand

Eaton

CC Min Displacement

36.00

CC Max Displacement

370.00

CID Min Displacement

2.20

CID Max Displacement

22.60

Min Cont PSI

1300

Max Peak PSI

2750

Min Cont BAR

90

Max Peak BAR

190

Min RPM

152

Max RPM

1021

Min Cont Torque in LBS

672

Intermittent Max Torque in LBS

4300

Min Cont Torque Nm

76

Intermittent Max Torque Nm

486

Specs Data
