FPS Banjo Bolt Manifold Assemblies

Inspired by the banjo bolt fittings commonly used in the automotive industry, FPS banjo bolt manifold assemblies provide a cost effective solution where space and/or safety are priorities.

FPS banjo bolt

By installing directly into an SAE port, the FPS banjo bolt reduces the need for extra plumbing in the system.In load control applications the direct connection also eliminates the potential for loss of hose or tubing integrity, which can compromise safety of the equipment.

Available sizes to best fit the application and operating pressure ratings to 3000psi.

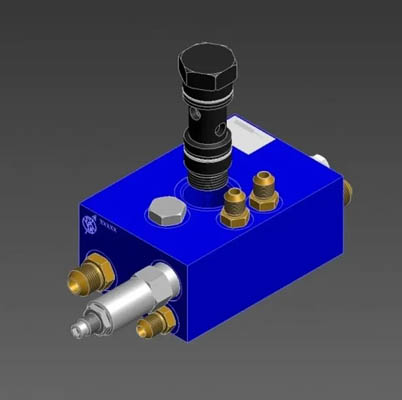

The banjo bolt is installed into an FPS custom cavity.

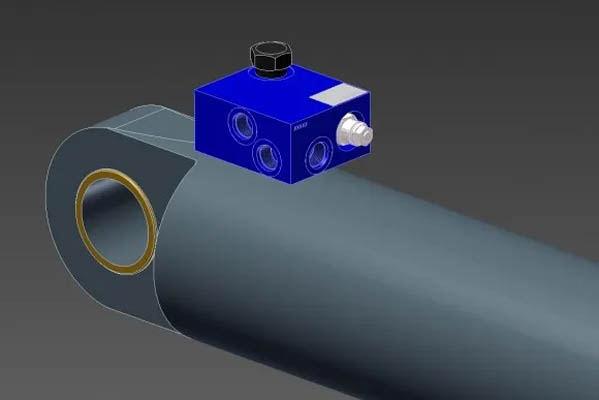

Compact installation on a cylinder.

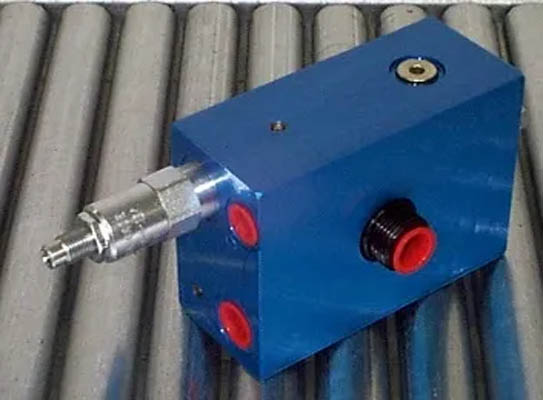

This manifold provides counter-balance load control in a winch application.

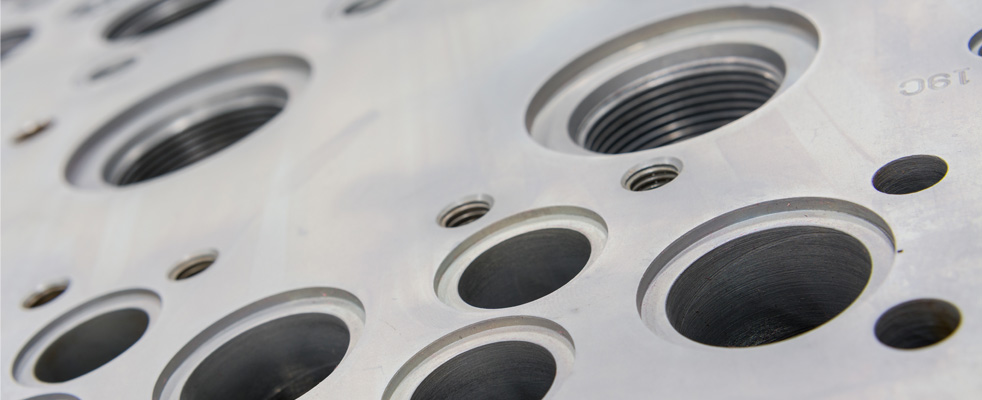

SAE port connection view
