Applied Fluid Power specializes in designing and manufacturing custom hydraulic manifolds tailored to each customer's unique requirements. Whether you're looking to streamline an industrial system or conserve space for a mobile application, we've got you covered.
We deliver the best solution possible for your specific application. Additionally, we offer integration of custom manifolds into fully bespoke designs, providing comprehensive solutions to meet your needs.
Our team collaborates closely with you to understand the intricacies of your machinery and requirements.
Our Hydraulic Manifold Capabilities
SiCV Integrator
When space is limited, but you need to main pressure control, flow control, directional control, and more, Applied Fluid Power offers Screw-in Cartridge Valves (SiCV). As experts in SiCV integration, our team can select from an array of world-class valves to best suit the needs of your application.
Quick Prototyping
Whether you have a spec in hand, or require our team’s expertise, we can prototype a solution quickly, getting your system up and running faster with less delay.
Custom Manifold Design and Manufacturing
We work with our customers on a technical level to design, engineer, and test all of our manifold projects. Our locations utilize a range of components in order to meet your specific design requirements. We go the extra mile, designing units with 3D CAD, by highly qualified teams of engineers.

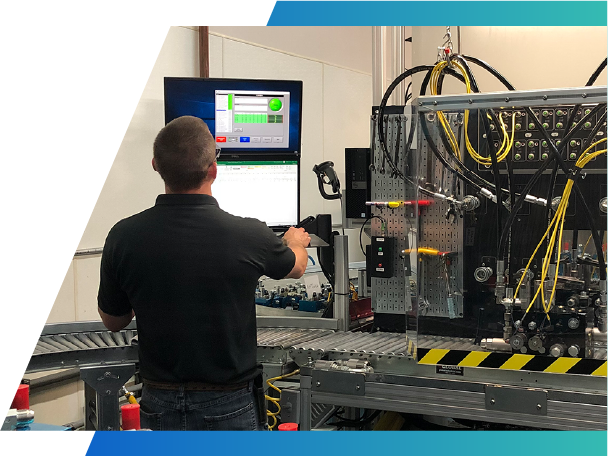

Our diagnostic capabilities allow us to characterize the performance of the product in a similar context to the actual application so we can verify performance before the product even leaves our shop.
Custom Hydraulic Manifold Assembly
Using the latest CAD software and our years of experience designing mobile equipment, hydraulic circuits and manifolds, our team can develop practical and efficient cartridge valve manifolds. CAD technology makes revisions and redesigns easy and quick, reducing the time from drawing board to manufacturing. The CAD drawings are then used to quickly work with the end user to fine tune the design to perfectly fit the application.
Most of our manifolds are made of 6061-T6 aluminum, however, we also use ductile iron and steel when needed or requested.
Our CNC equipment is programmed and ready for rapid and repeatable set-ups so we can easily handle short runs and partial releases of larger orders.
Showcasing Fluid Power Sales Custom Manifold Expertise
Our design engineers work closely with your production team to design a custom hydraulic system to meet your standards and requirements.
Here are some examples of projects produced by Fluid Power Sales:
Aluminum manifold with special profile milling and custom handle clip
Explosion-proof solenoid valves using cartridge and flange mounted valves
Stackable manifold designs with included lifting eyes for safe handling
Aluminum stackable manifold design with included foot brackets for easy mounting
Custom shipping/installation bracket supplied to ensure ease of installation and that nothing is damaged during shipping
Ductile iron with custom shaped material extrusion for installation in a very challenging location
Combining aluminum and ductile iron to achieve high and low-pressure circuits and weight and cost savings
Custom engraving (including logos)
Ready to customize your hydraulic system? Partner with our experts to create a custom manifold for your application.
